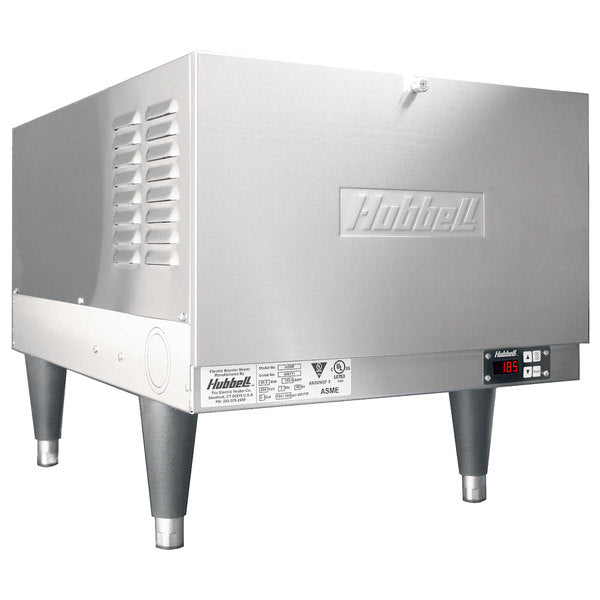

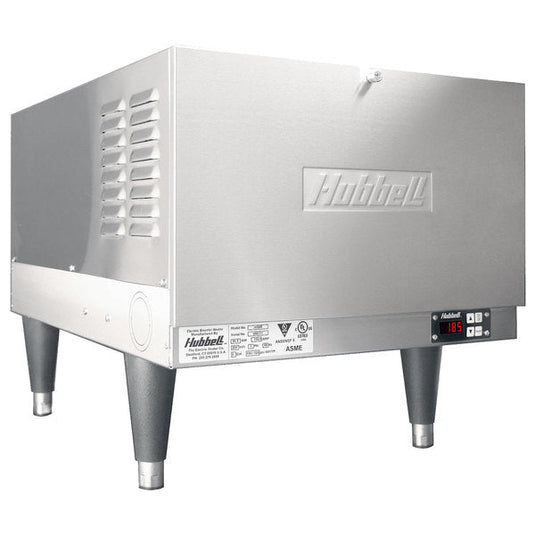

Hubbell Process Water Heater 240V 3P

Process Water Heater

• 6 Gallon Stainless Steel ASME Vessel
• 36 kW, 240 volt, 3 phase


Complete with electrical operating controls including the following: magnetic contactor, immersion elements, digital temperature controller with safety hi-temperature cut out, low water cut out, and an ASME rated combination temperature and pressure relief valve. Unit is factory assembled, insulated, jacketed, wired, and tested. Unit is ready for electrical and plumbing service connections.

This kit includes a stainless steel pump to continuously circulate water through a closed loop system, an expansion chamber may be needed. Professional installation of water lines by a certified plumber is recommended.

Water Heater Features

Industrial Grade Construction

• Stainless steel pressure vessel provides maximum service life
• ASME Section VIII stamped vessel ensures high quality construction
• Heavy duty construction withstands demanding industrial use
• Packaged with all electrical operating controls for efficient installation
• Small reserve capacity lowers peak power demand and reduces operating costs in systems with ON / OFF cyclical demand

*The pump will not come with a power cord, it will need to be wired on site
