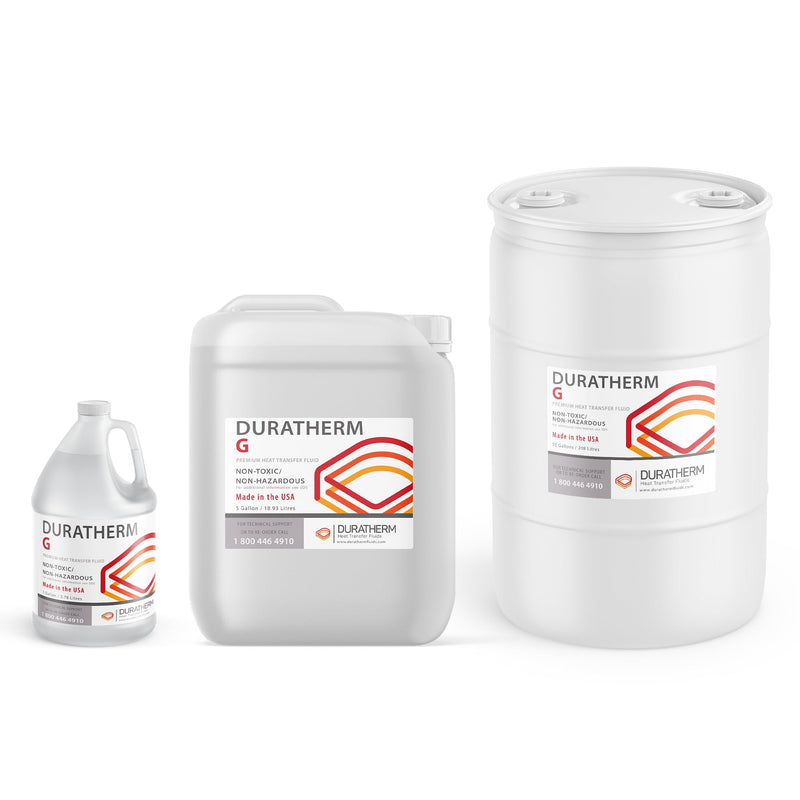

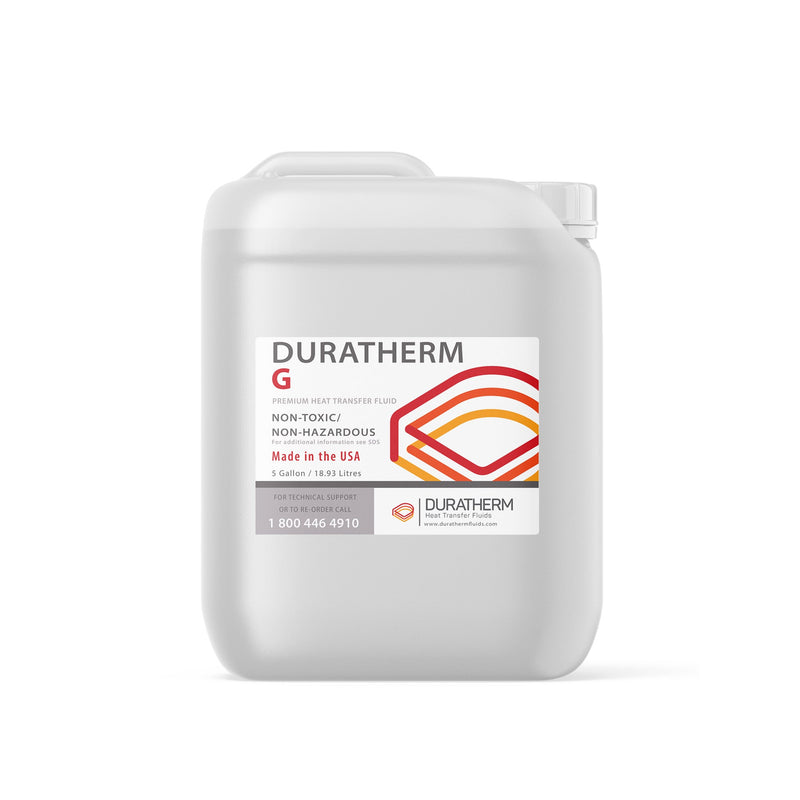

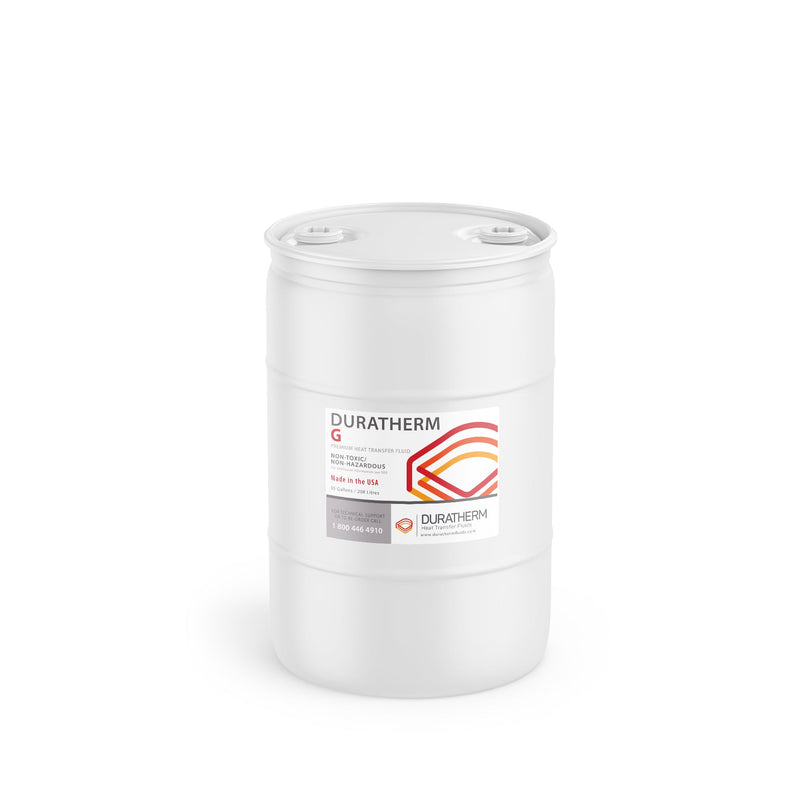

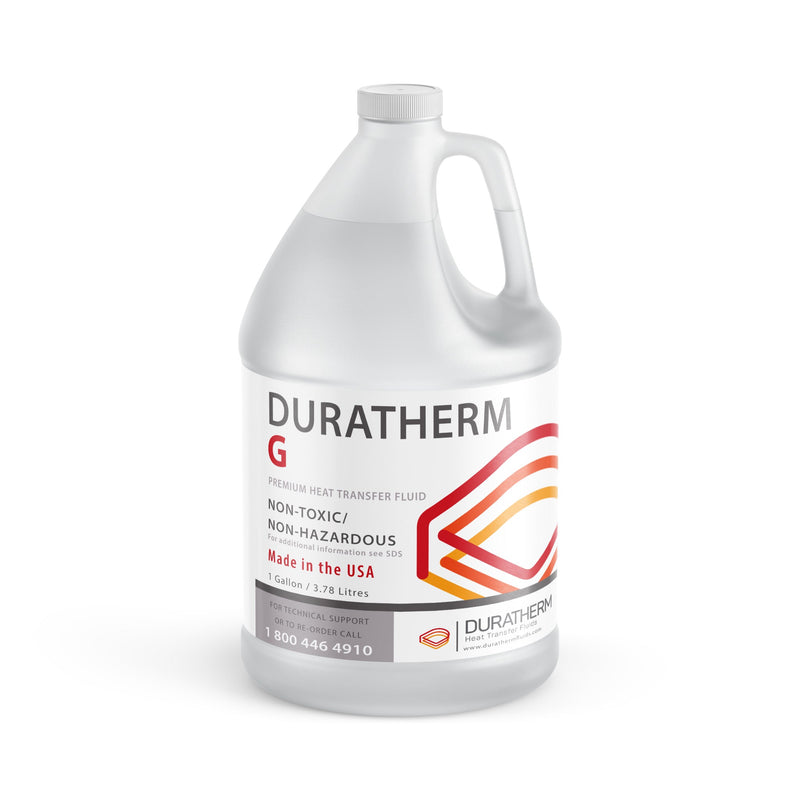

Name: Duratherm G Thermal Fluid - High Temp Rated 260°C (500°F)
Brand: BVV
SKU: DURATHERMG-1G
Price: 75.0 USD
Availability: InStock

DURATHERM G

Duratherm G is a glycol based thermal fluid rated to 260°C (500°F), a proprietary additive system that not only helps the fluid last longer and run cleaner, it makes it the ideal choice for extreme oxidation environments including demanding, open bath applications.

260°C (500°F) maximum operating temperature
High flash point of 249°C (480°F)
Ideal for use in extreme oxidation environments like open baths
Polyalkylene glycol based thermal fluid with enhanced performance

TEMPERATURE RATINGS
Max Bulk/Use Temp	260°C
Max Film Temp.	288°C
Pour Point ASTM D97	-40°C

SAFETY DATA
Flash Point ASTM D92	249°C
Fire Point ASTM D92	263°C
Autoignition ASTM E-659-78	366°C

THERMAL PROPERTIES
Thermal Expansion Coefficient	0.0679 %/°C
Thermal Conductivity	W/m·K
38°C	0.182
100°C	0.175
204°C	0.165
204°C	0.164
260°C	0.159
Heat Capacity	kJ/kg·K
38°C	1.976
100°C	2.043
204°C	2.153
204°C	2.152
260°C	2.211

PHYSICAL PROPERTIES
Viscosity ASTM D445	cSt
40°C	42.16
100°C	7.43
204°C	1.88
204°C	1.87
260°C	1.23
Density ASTM D1298	kg/l
38°C	0.92
100°C	0.90
204°C	0.87
204°C	0.87
260°C	0.86
Vapor Pressure ASTM D2879	kPa
38°C	0.28
100°C	0.88
204°C	2.40
204°C	2.41
260°C	3.52
Distillation Range ASTM D2887
10%	368°C
90%	514°C
Specific Gravity @ 16°C	0.963

Note: The values quoted in the table above are typical of normal production.
They do not constitute a specification
