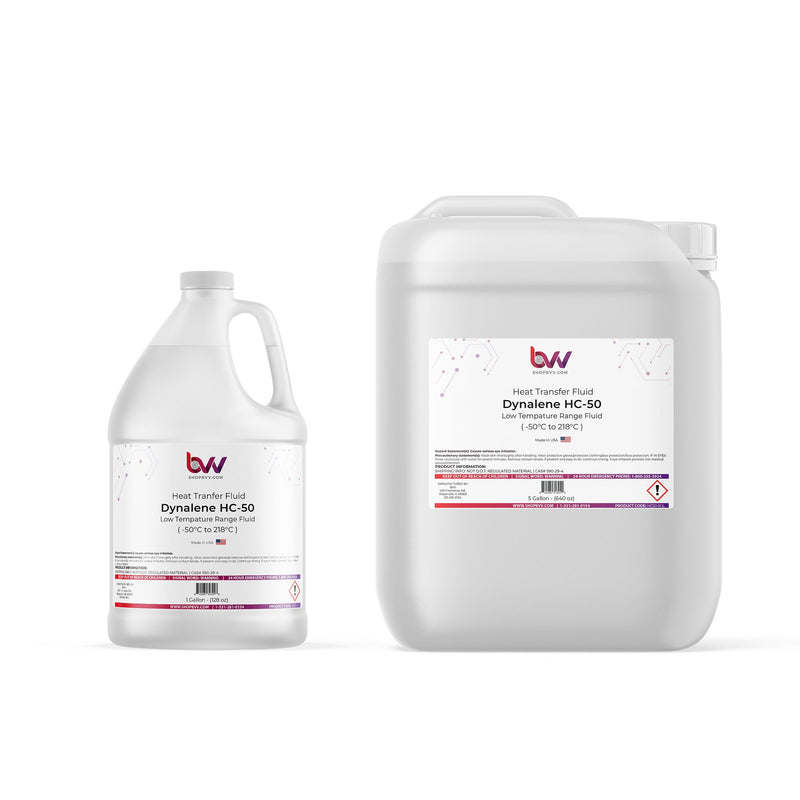

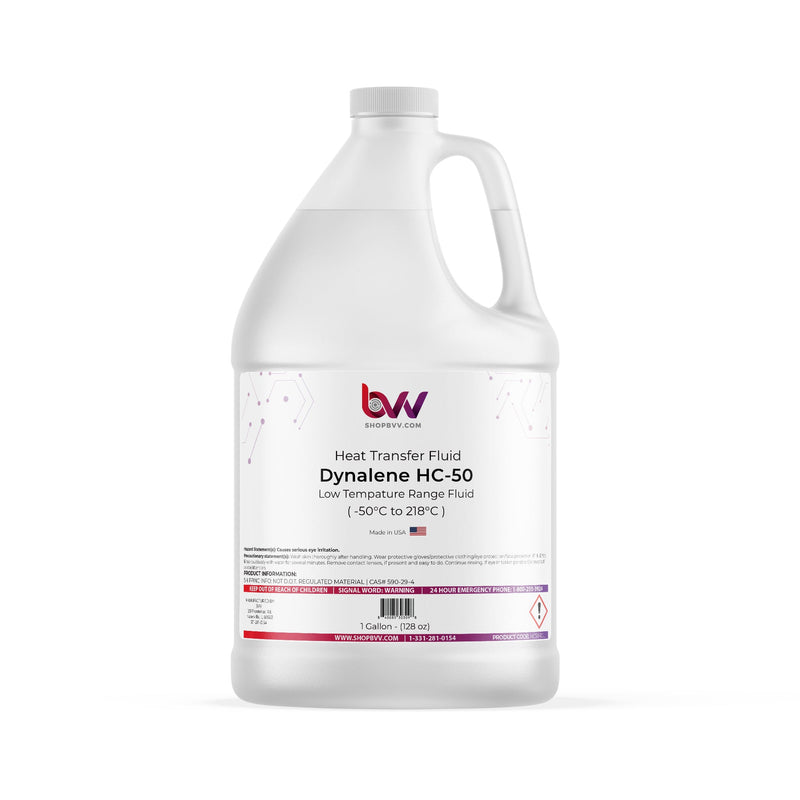

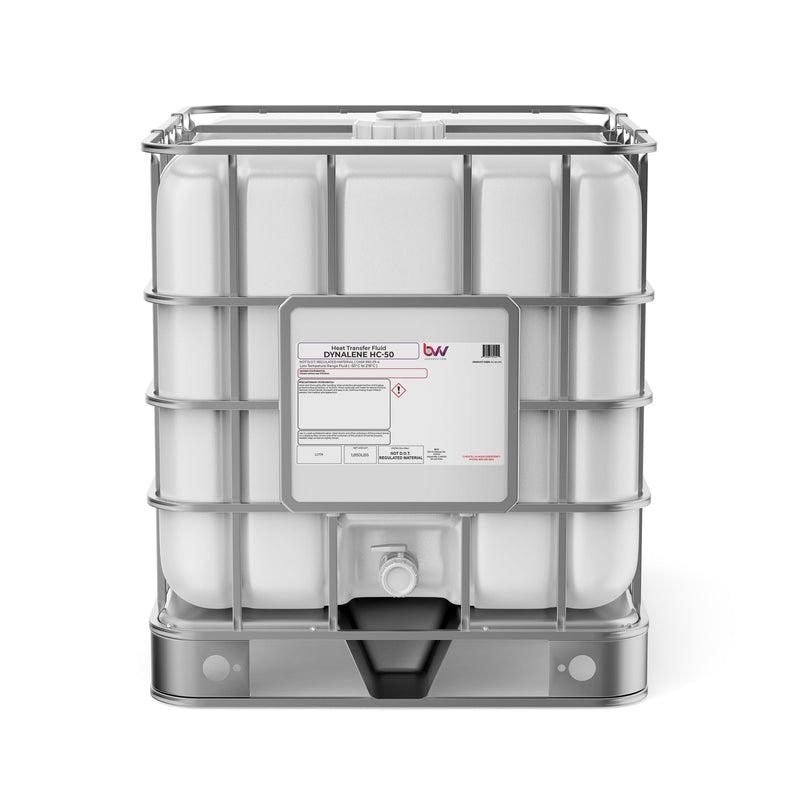

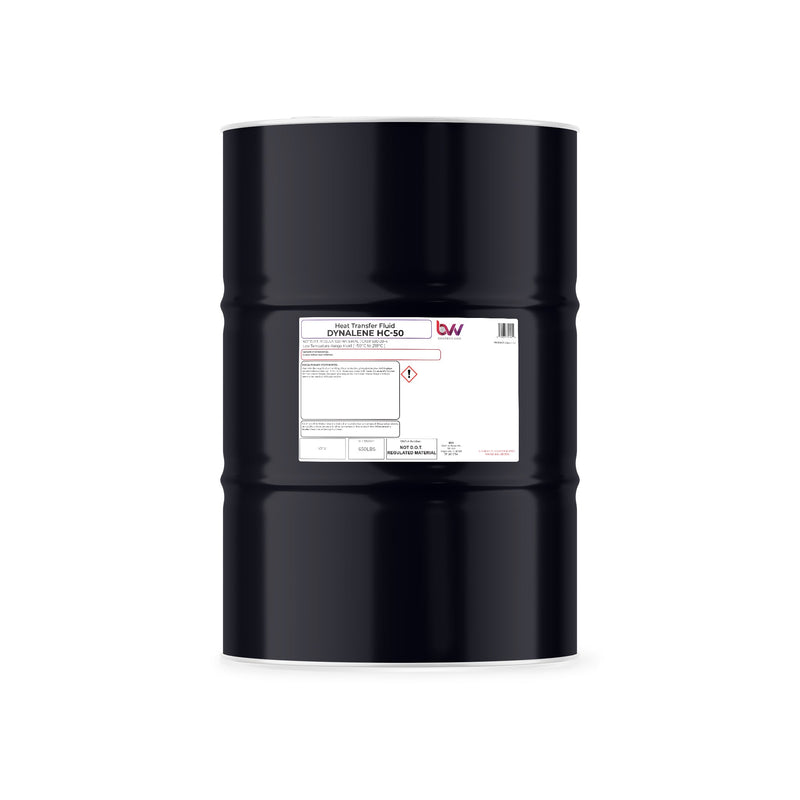

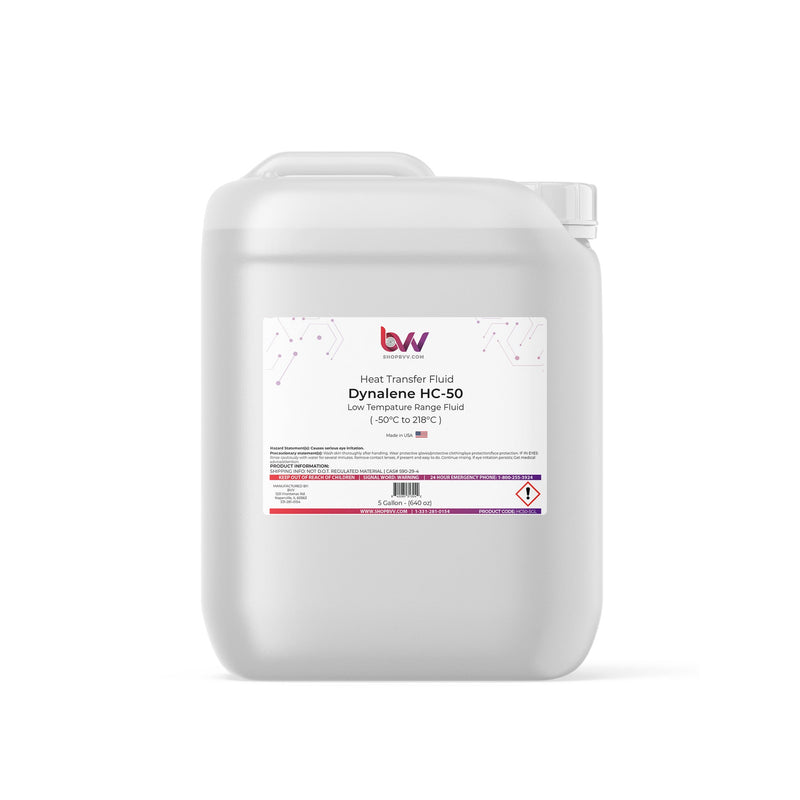

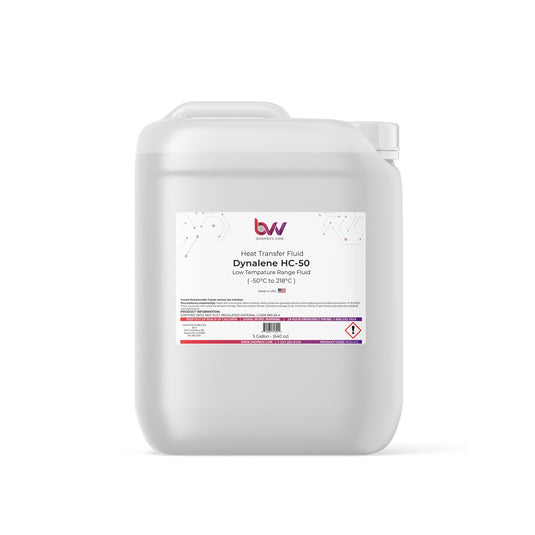

Dynalene HC-50

Dynalene HC/Potassium Formate is a water-based, low-temperature heat transfer fluid engineered to deliver the excellent heat transfer performance in applications down to -58°F (-50°C). With the temperature range -50°C to +218°C, Dynalene HC easily exceeds the performance of other water-based chemistries such as glycol /water mixtures, calcium chloride/water as well as hydrocarbon and silicone-based fluids. The fluid comes in five concentrations and is non-toxic, non-hazardous and non-flammable.

Effective Calcium Chloride Alternative

Dynalene HC/Potassium Formate heat transfer fluid is an excellent alternative to calcium chloride and other brine solutions because it demonstrates a higher thermal efficiency and lower corrosion rate. This fluid, as compared to other glycols, calcium chloride, and other brine solutions, should lower the leak and spillage rate, and reduce maintenance and repair costs on refrigerated systems. This is due to Dynalene HC's use of "safe" chemistries resulting in a high level of corrosion inhibition. The viscosity of calcium chloride solutions is also noticeably higher than Dynalene HC heat transfer fluid, which in turn makes Dynalene HC a more thermally efficient solution.

Key Features:

• 100% Biodegradable
• Non-Toxic
• Non-flammable
• Aqueous-Based
• Superior heat transfer characteristics
• Attractive alternative to glycols and brines

Applications:

• Pharmaceutical process
• Food and beverage
• Chemical process
• Climatic Chamber
• LPG Processing
• Low-Temperature Baths

Temperature Range:

Open systems: HC-50: -51°C (-60°F) to 110°C (230°F)
Closed Systems: HC-50: -50°C (-58°F) to 218°C (425°F)

• Technical Data Sheet
• MSDS
• Engineering Guide
