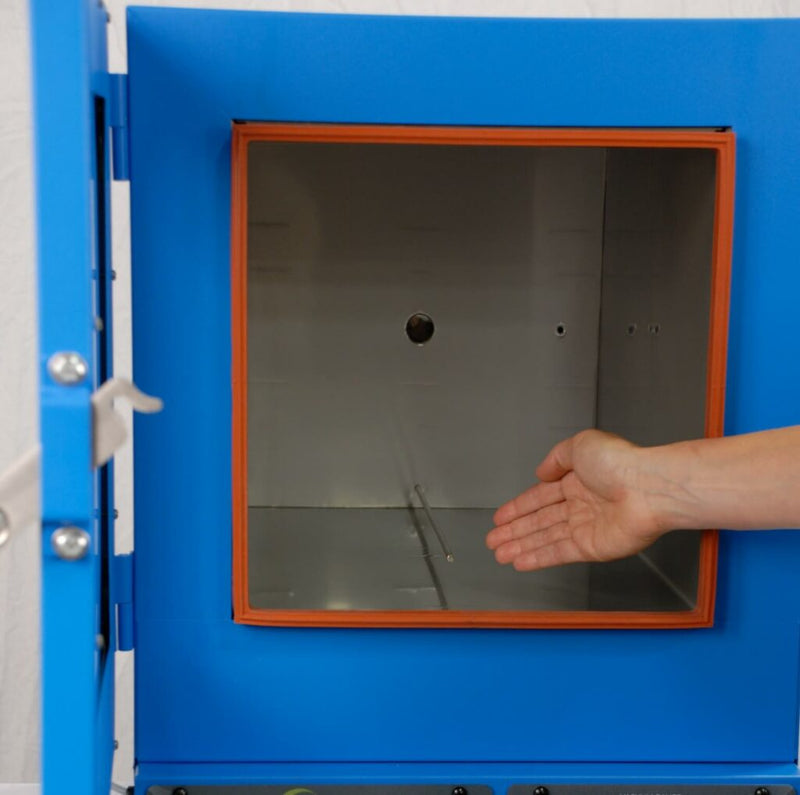

Cascade Vacuum Oven Door Gaskets

Gaskets wear out. Remember to clean, rotate and have spares on hand! Our versatile collection of vacuum oven door gaskets is designed to fit the Cascade Sciences CVO-2 , CVO-5, and CVO-10 vacuum oven models, meeting your specific needs.

Choose from our Solvent Resistant, VITON, and High Temp Silicone Door Gaskets, each offering superior performance!

Features

Viton Door Gaskets

• Available in sizes: 12″ x 12″ (CVO-2) and 18″ X 18″ (CVO-5)
• Material: VITON (FKM synthetic rubber and fluoropolymer elastomer)
• Max Temperature: 150°C / 302°F
• Ideal for Cascade 2 and 5cubic foot vacuum ovens
• Excellent resistance to solvents, oils, fuels, and mineral acids
• Low outgassing rate: 1 x 10-6 Torr-liter/cm2-s initial degassing rate
• Minimal weight loss of 0.07% after over 336 hours of vacuum exposure
• Exceptional UV resistance, protection against fungus, molds, and oxidation

*The name VITON is a registered trademark of The Chemours Company

Solvent Resistant Gaskets

• Available in sizes: 12″ x 12″ (CVO-2) and 18″ X 18″ (CVO-5)
• Material: BUNA (a material designed to withstand solvents)
• Max Temperature: 105°C / 221°F
• Ideal for Cascade 2 and 5 cubic foot vacuum ovens
• Application: Solvents
• Excellent resistance to many hydrocarbons, fats, oils, greases, hydraulic fluids, and chemicals

High-Temp Silicone Door Gaskets

• Available in sizes: 12″ x 12″ (CVO-2), 18″ X 18″ (CVO-5), and 24″ X 28″ (CVO-10)
• Material: Silicone
• Max Temperature: 230°C / 446°F
• Ideal for Cascade 2 and 5 cubic foot vacuum ovens
• Application: General and High Temperature
• Resists moderate or oxidizing chemicals, ozone, and concentrated sodium hydroxide

Specifications

Viton Door Gaskets

• Available in sizes: 12″ x 12″ (CVO-2) and 18″ X 18″ (CVO-5)
• Color: Black
• Material: VITON (FKM synthetic rubber and fluoropolymer elastomer)
• Max Temperature: 150°C / 302°F

Solvent Resistant Gaskets

• Available in sizes: 12″ x 12″ (CVO-2) and 18″ X 18″ (CVO-5)
• Color: Black
• Material: BUNA (a material designed to withstand solvents)
• Max Temperature: 105°C / 221°F

High-Temp Silicone Door Gaskets

• Available in sizes: 12″ x 12″ (CVO-2), 18″ X 18″ (CVO-5), and 24″ x 28″ (CVO-10)
• Color: Orange
• Material: Silicone
• Max Temperature: 230°C / 446°F

PRO TIP:  Rotate your vacuum oven door gaskets for even wear and longer life.
