SKU: BSVF6
Adding product to your cart
Oil and Maintenance Free!

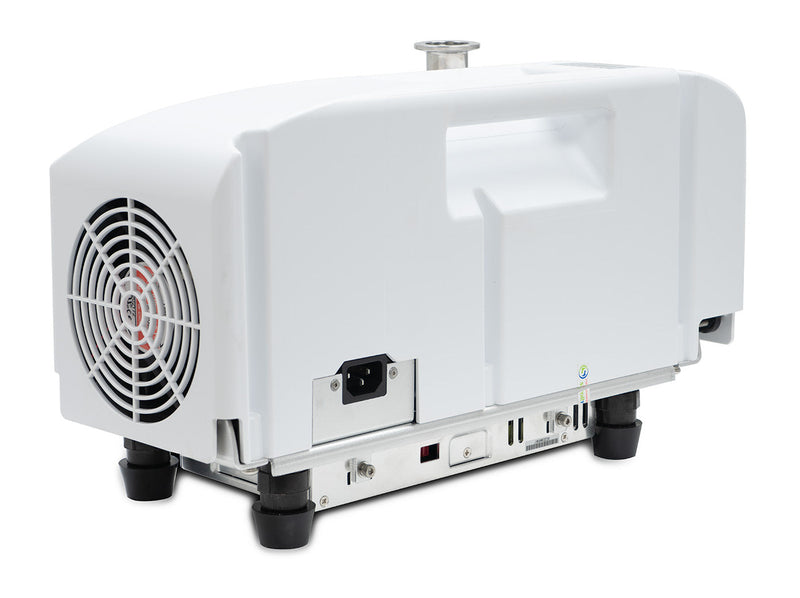

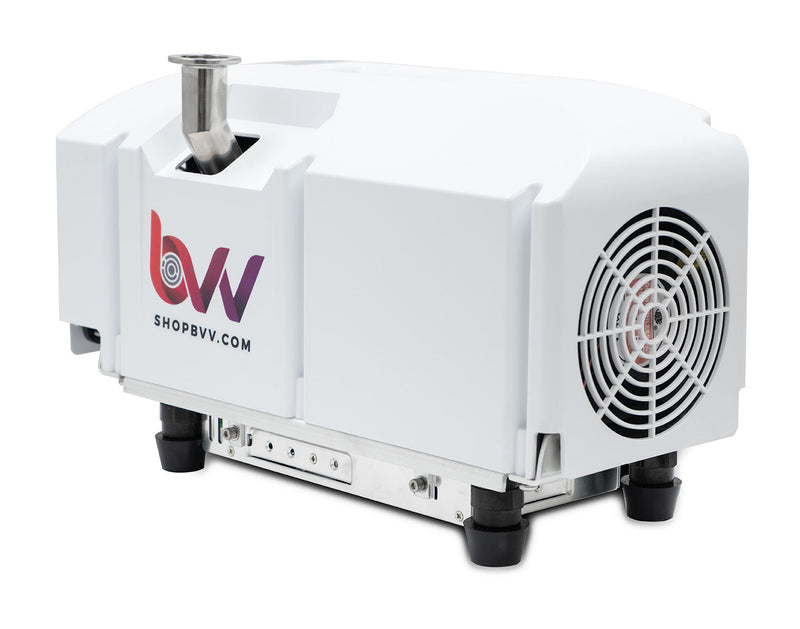

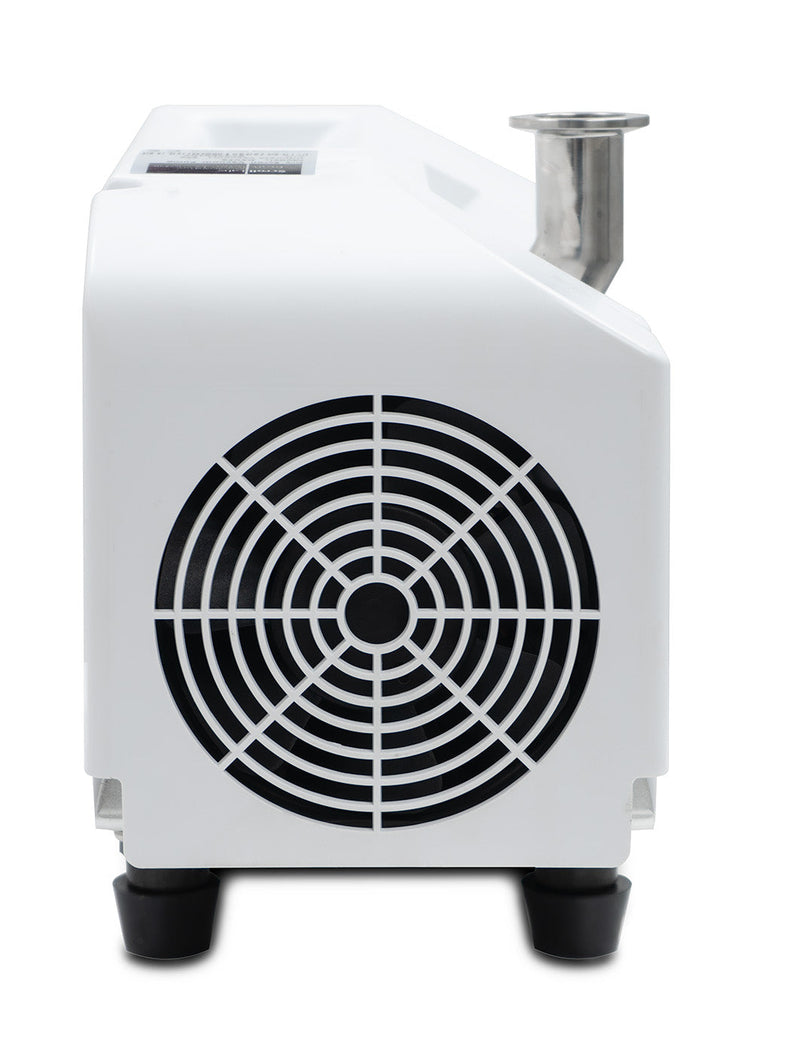

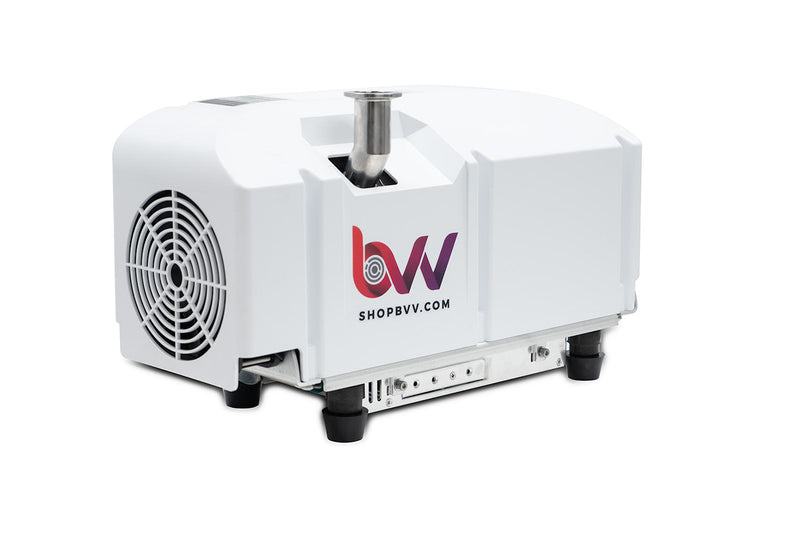

Introducing the BSVF6 Vacuum Pump, equipped with cutting-edge patented floating scroll technology for unparalleled performance. This pump boasts a 3.5CFM (100 L/min) pump speed and an ultimate pressure of 25 Microns (≤ 0.03 mbar), making it a powerhouse in creating and maintaining vacuums. The 100% oil-free design ensures clean and efficient operation, while the brushless DC motor, with 350W motor power and 200W installed power, provides reliability and longevity. With a compact size ideal for portable equipment, this vacuum pump offers unlimited vapor tolerance and a noise level as low as 55 dB(A) with its case. The SVF-E2-100 is maintenance-free, featuring a robust build with inlet/outlet connections in KF-25, air-cooled cooling system, and a wide ambient temperature range from -40ºC to 50ºC. Elevate your vacuum processes with this advanced, compact, and powerful solution.
Model
BSVF6
Pump Speed
100 L/min
Ultimate Pressure
≤ 0.03 mbar (25 Micron)
Motor Power
350 W
Installed Power
200 W
Motor Type
Brushless DC Motor
DC Voltage
48 VDC
AC Voltage
(with adapter)
100 – 240 VAC
Maximum Speed
4000 RPM
Vapor Tolerance
Unlimited
Maximum Inlet Speed
Maximum Outlet Speed
1 barg
Noise Level (With Frame)
60 dB(A)
Noise Level(With Case)
55 dB(A)
Weight (With Frame)
7.5 kg
Weight (With Case)
8.5 kg
Dimensions (With Frame)
324×225×175mm
Dimensions (With Case)
394×236×189mm
Inlet/Outlet Connection
KF-25 or G 3/8″
Cooling System
Air – Cooled
Ambient Temperature
-40ºC to 50ºC
