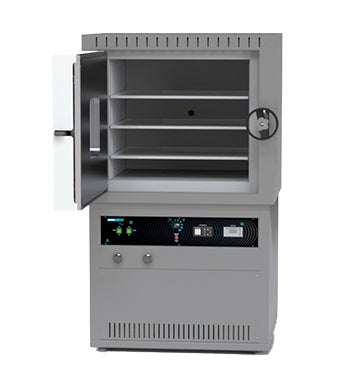

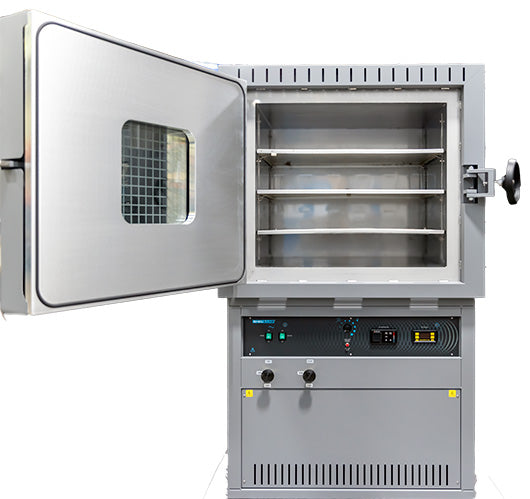

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF

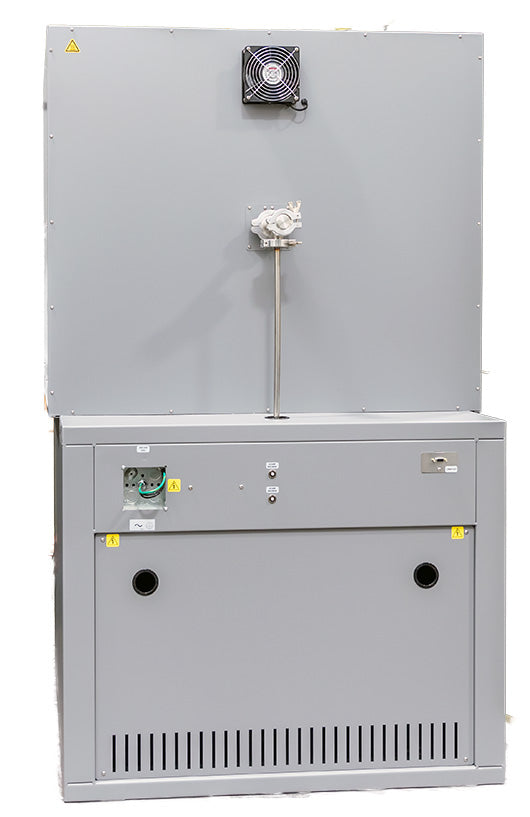

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 2
SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 3

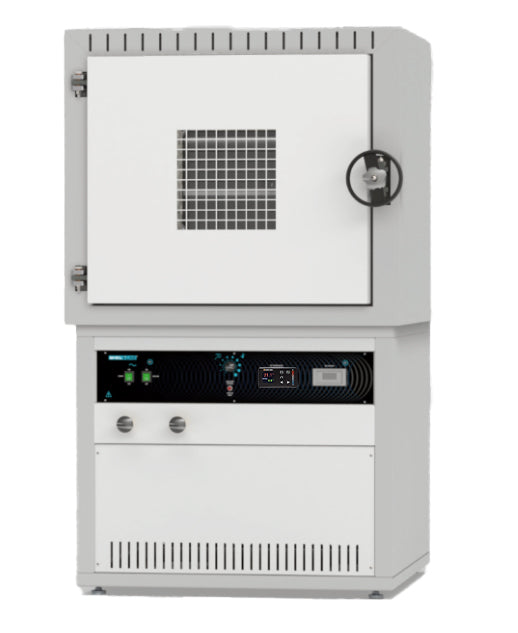

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, front view

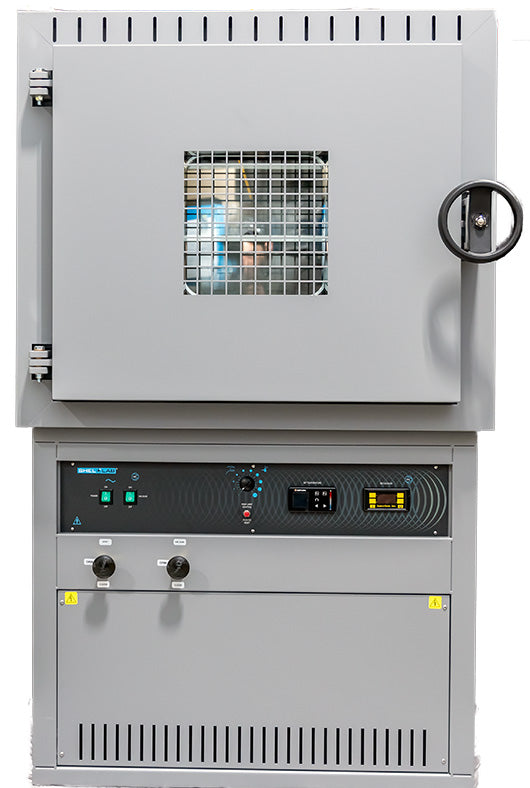

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 5
SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 6

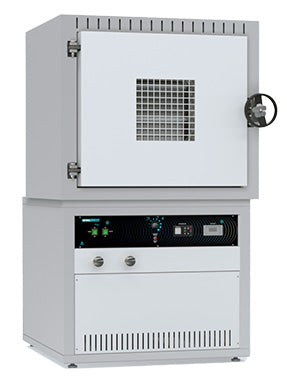

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 7
SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 8
SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 9
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 2
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 3
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, front view
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 5
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 6
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 7
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 8
Load image into Gallery viewer, SHEL LAB SVAC9-2 Vacuum Oven 9.3CF, additional product view 9
📦
Special Order Item Ships directly from our supplier. Allow extra time for delivery.

SKU: SVAC9-2

SHEL LAB SVAC9-2 Vacuum Oven 9.3CF

No reviews
BVV
$20,100.00
$20,100.00 $0.00
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

SHEL LAB SVAC9-2 Vacuum Oven 264L, 230V

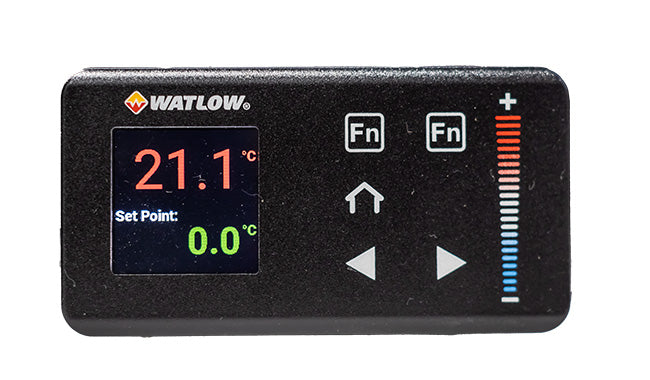

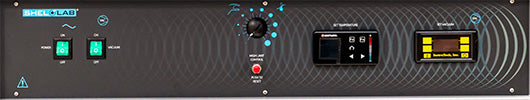

The SHEL LAB Model SVAC9-2 is one of the largest vacuum ovens on the market, with 9.3 cubic feet of capacity. This unit also features a fully programmable Watlow PM9 Plus controller and a cool touch surface. A digital vacuum gauge shows chamber vacuum level in measurements of Torr and m/Torr. The display range is 760 Torr down to 0 mTorr (Maximum permitted end vacuum is 10 mTorr. Leak rate is 30 mTorr in 30 min). A secondary independent high limit controller provides overtemperature safety protection.

This unit includes true vacuum valves and has cross-flow ventilation within the oven chamber to enhance total performance. The vacuum oven is secured to a ruggedly constructed mobile stand to create a vacuum pump at the base. Although the oven is not supplied with a vacuum pump, all vacuum plumbing and KF25 connections are provided.

The SHEL LAB SVAC9-2 vacuum oven is equipped with a Viton gasket, which provides an excellent combination of high-temperature performance and chemical resistance. When paired with this oven’s deep-draw capacity and large chamber volume, the SVAC9-2 serves as one of the most robust vacuum work stations available on the market.

Features include:

  • Watlow PM9 Plus Controller Capable Of 40 Step Ramp And Soak Profiles, Or 4 Files With 10 Steps Per File
  • Stainless Steel Interior
  • Stainless Steel Exterior Option Available (Ideal For Cleanroom Applications)
  • KF25 Fitting Included
  • Built in Vacuum Pump Mount
  • 24 Month Limited Warranty

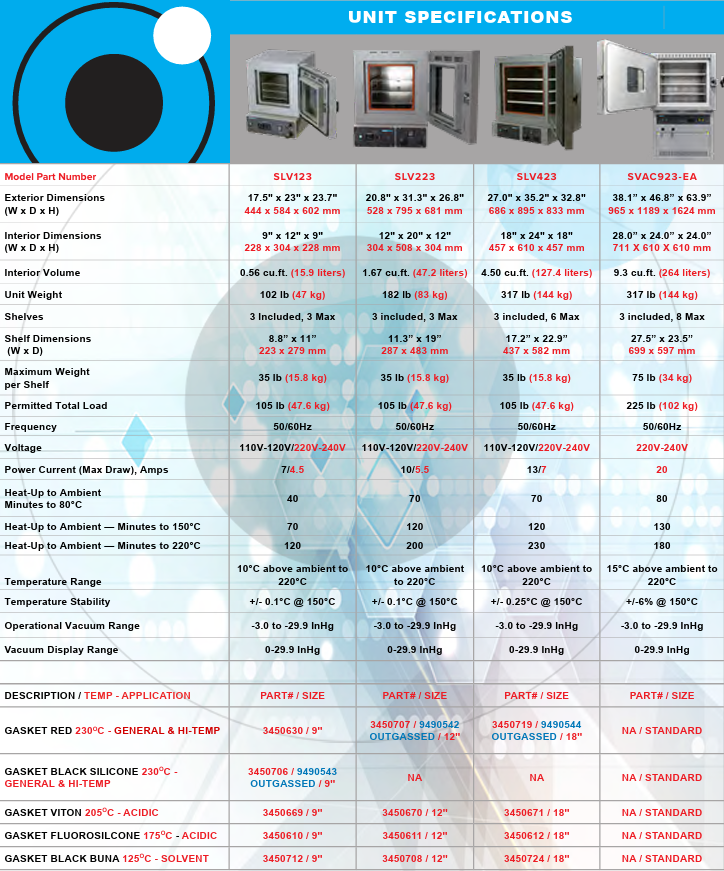

Temperature Range Ambient +15°C to 220°C
Temperature Uniformity ± 6% of Set Point
Temperature Stability ± 0.2°C at 150°C
Heat Up Times (From Ambient 20°C) 80°C: 80 Minutes 150°C: 130 Minutes 220°C: 180 Minutes
Operational Vacuum Range 3.0 to 29.9 inHg (101.6 to 1,012.5 mbar)
Vacuum Gauge Range 0.0 to 29.9 inHg (0.0 to 1,012.5 mbar)
Volume 264.0L (9.30 cu. ft.)
Shelves 3
Max. Shelf Capacity 8
Max. Shelf Load 75.0 lb. (34.0 kg)
Interior Dimensions (W x D x H) 28.0 x 24.0 x 24.0 in. (71.0 x 60.9 x 60.9 cm)
Exterior Dimensions (W x D x H) 38.1 x 46.8 x 63.9 in. (96.5 x 118.9 x 162.4 cm)
Weight 492.0 lb. (223.0 kg)
Electrical Requirements 230V AC, 50/60Hz, 20.0A
