1/4" 37 Degree Female JIC Braided Stainless Steel Hose
📦
Special Order Item Ships directly from our supplier. Allow extra time for delivery.

SKU: SSH2404F

1/4" 37 Degree Female JIC Braided Stainless Steel Hose

No reviews
BVV
$42.00
$42.00
Sale Sold out
/
Select Length:
This is a pre order item. We will ship it when it comes in stock.

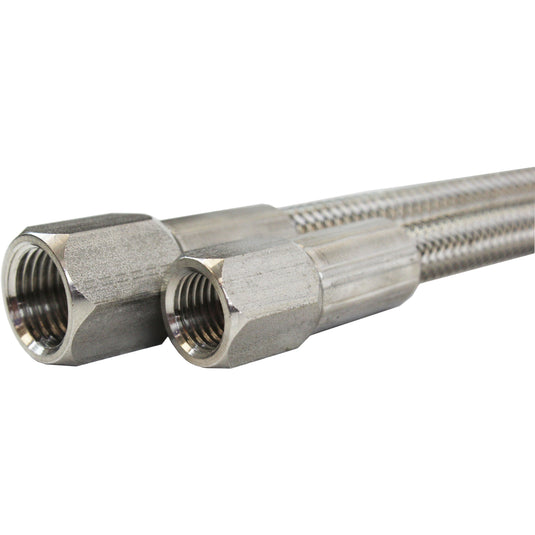

1/4" 37° Female JIC Stainless Steel PTFE Hose

These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches.


***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.

Stainless Steel Hose Technical Data Sheet295 Pdf Logo Illustrations & Clip Art - iStock

Specifications:

Connection Type(s): 1/4" 37° Female JIC Swivel (7/16-20 Thread)
Liner Material PTFE (Teflon)
Braid Material 304 Stainless Steel
Swivel Material 304 Stainless Steel
Temperature Rating -94°F to 500°F (-70°C - 260°C)
Pressure Rating 2100 PSI
Chemical Resistance Excellent
Max Bend Radius 3"
