BVV 3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

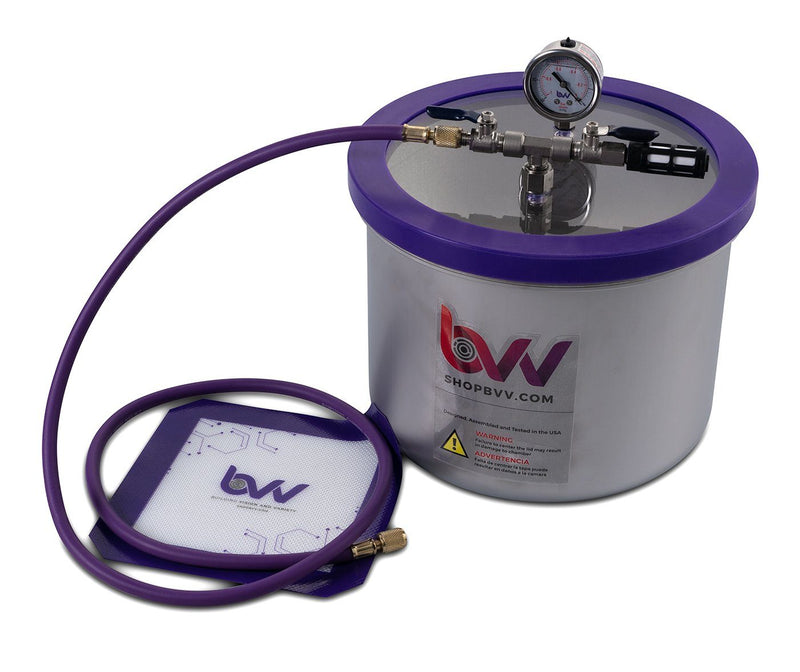

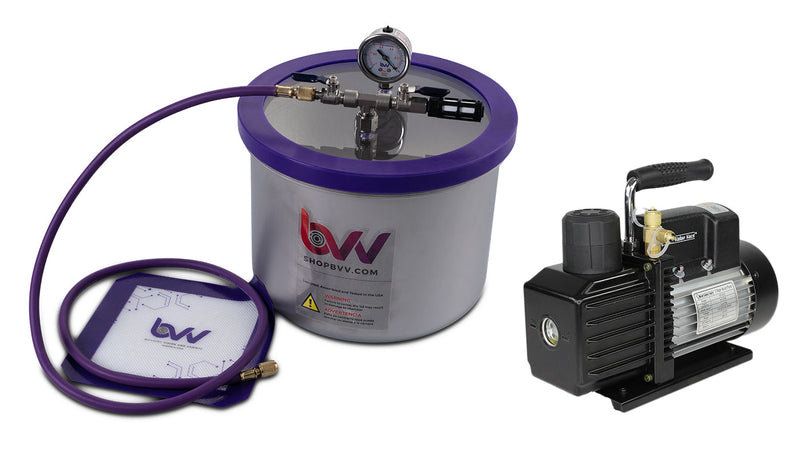

Load image into Gallery viewer, BVV 3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

📦

Special Order Item Ships directly from our supplier. Allow extra time for delivery.

SKU: BVV3GSSWVE115

BVV 3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

Name: BVV 3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit
Brand: BVV
SKU: BVV3GSSWVE115
Price: 299.0 USD
Availability: InStock

No reviews

BVV

$299.00

Sale Sold out

3CFM Single Stage Pump Sold out

4CFM Two Stage Pump Sold out

Quantity must be 1 or more

3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

(Chamber comes with 2 yr. limited warranty)

This is a complete BestValueVac® vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Utility Patent #14/533,548) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

Please refer to these charts for vacuum specifications at altitude and conversions:

Vacuum at Altitude Chart

Vacuum Conversion Chart

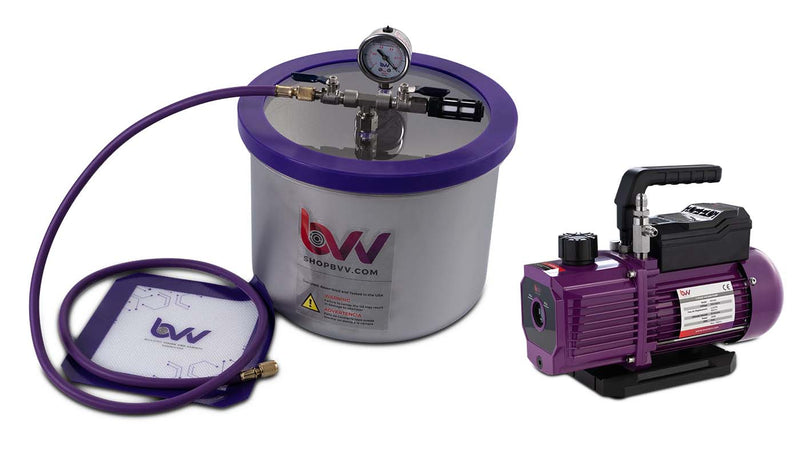

This Kit Includes:

Best Value Vacs 3 Gallon WIDE Stainless Steel Vacuum Chamber

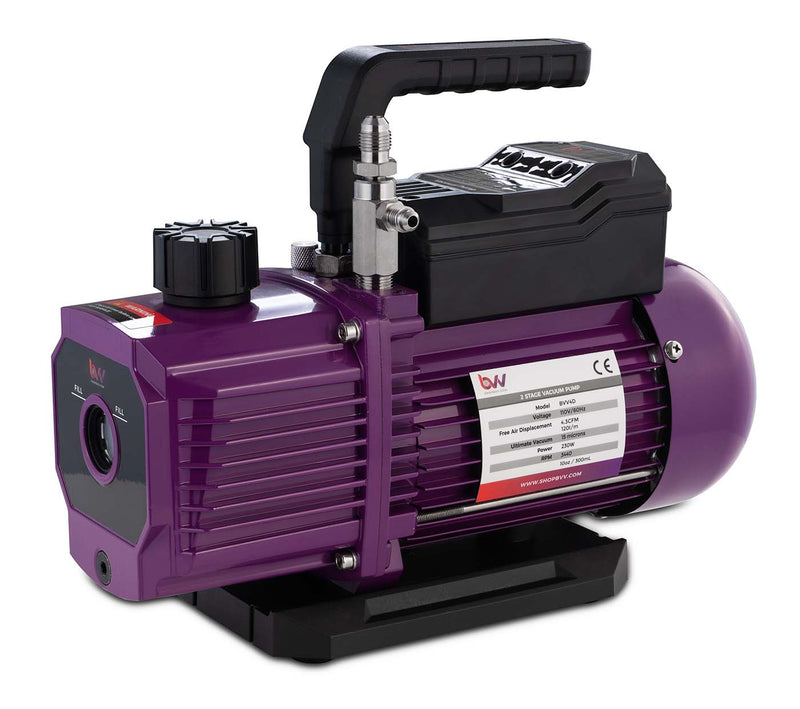

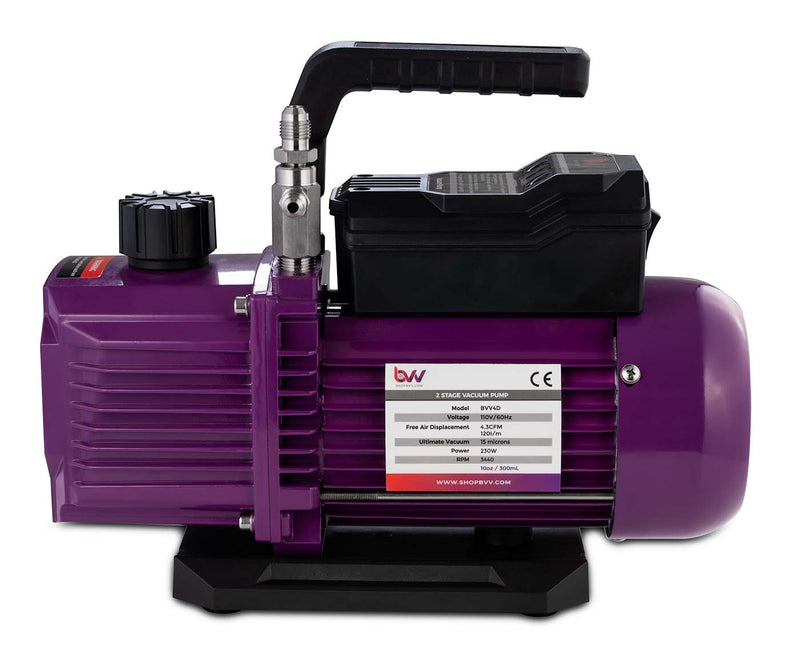

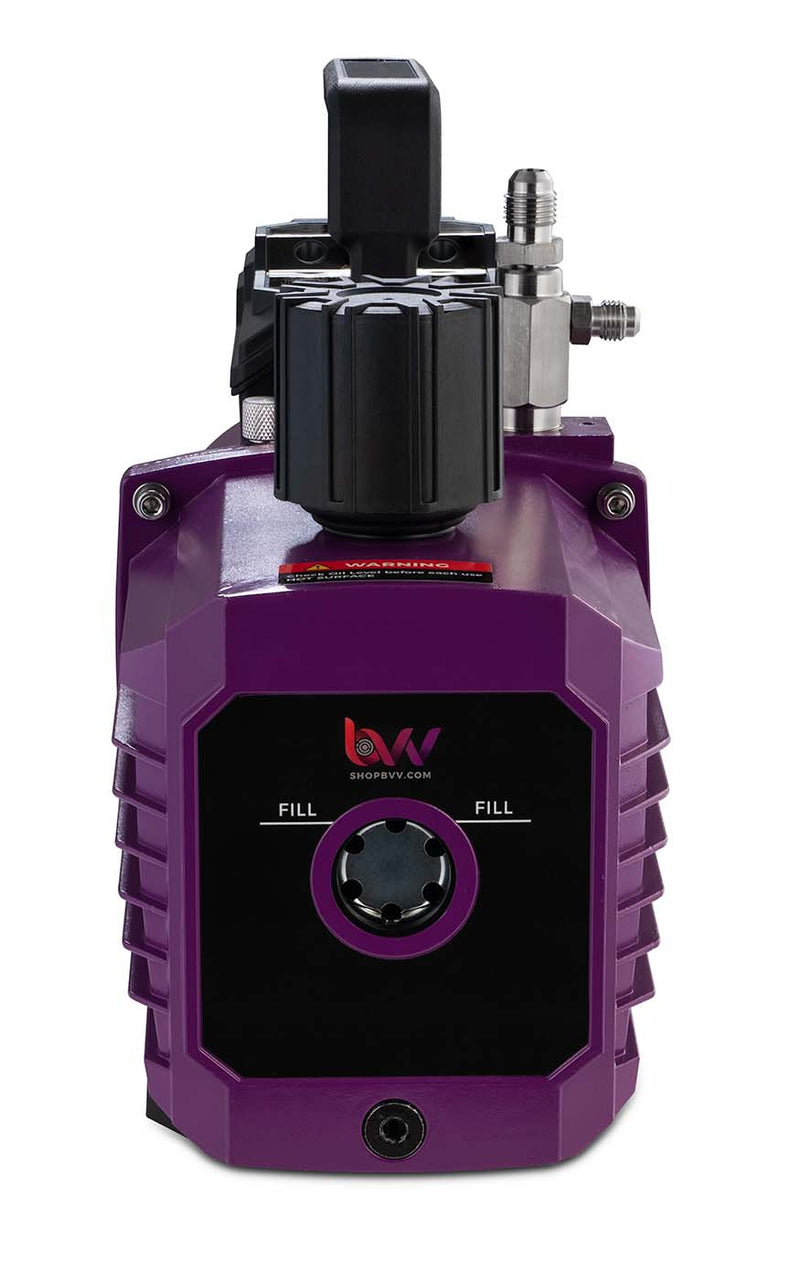

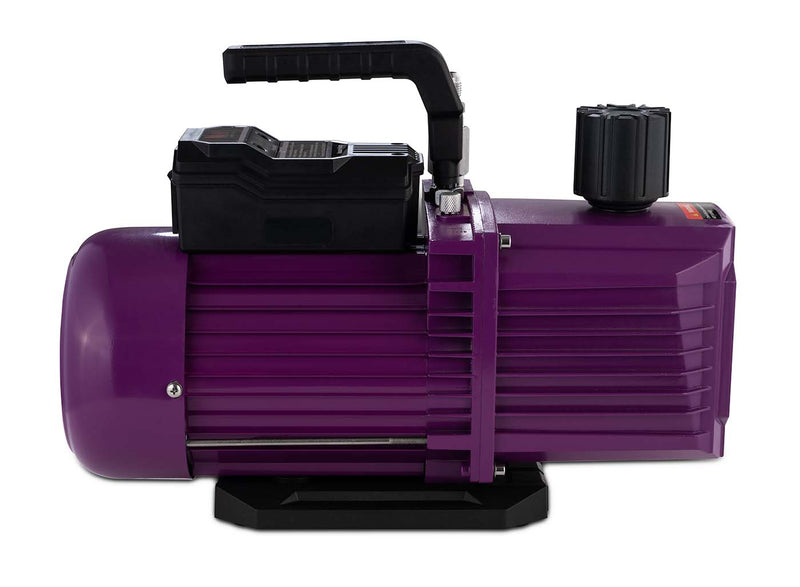

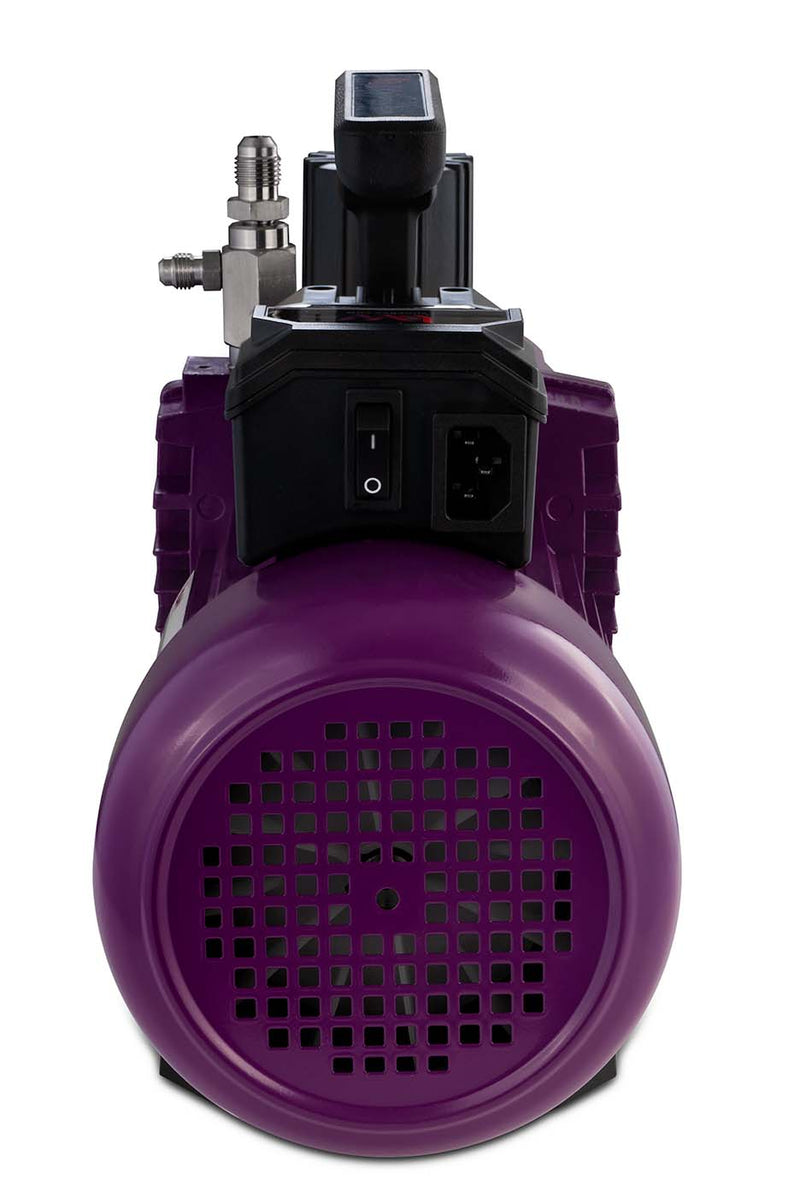

VE115 3CFM Single Stage Vacuum Pump or V4D 4CFM Two Stage Vacuum Pump
2 year limited warranty on the chamber
1 year limited warranty on the pump

Key Features:

High Strength Stainless Steel Chamber
Highly Durable and Reversible Silicone Gasket

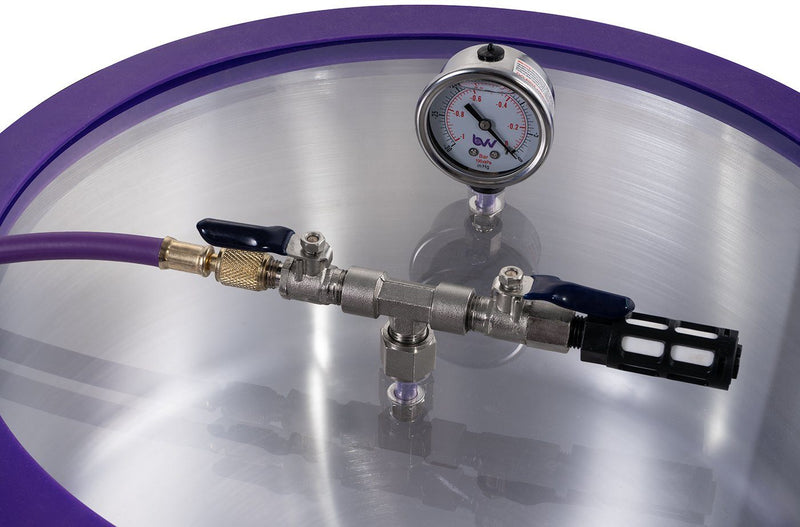

Glycerin filled vacuum gauge
User friendly vacuum connections that fit most vacuum pumps on the market
50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
Silicone vacuum pad
5' of vacuum rated HVAC hose to pull a vacuum.

Specification
Chamber Material	304 Stainless Steel
Gasket Material	Silicone
Lid Material	Acrylic
Internal Dimensions (ID)	8" Tall x 10.5" Diameter
Vacuum Gauge (Glycerin Filled)	InHG (0)-(-30)
Manifold Connections	1/4" SAE and 1/4" FNPT
Temperature Rating	150°F (65°C)
Additional Included Items	5' Purple Vacuum Rated HVAC Hose Platinum Cured Silicone Pad Black 50 Micro Air Filter

Models	BVV4D	BVV7S	BVV9D
Stage	2	1	2
Ultimate Vacuum (Microns)	15	75	15
Refrigerant Classes	A1 Non-Toxic, Non Flammable
Dimensions (in)	12.4 x 4.8 x 10.16	12.4 x 4.8 x 10.16	15 x 6.3 x 11.22
Weight (lbs)	19.4	16.5	32
Free Air Displacement	4.3 CFM	6.4 CFM	8.5 CFM
Motor Size (HP) RPM	1 HP 3440 RPM
Oil Capacity	10oz / 300ml	14.5oz / 410ml	24oz / 680ml
Voltage	110V 60 Hz
Power Cord	Hard Wired 3m / 9.8' Power Cord
Power Switch	Standard On / Off
Operating Temperature Range	32F to 125 F (0C to 52C)
Gas Ballast Valve	Yes	No	Yes

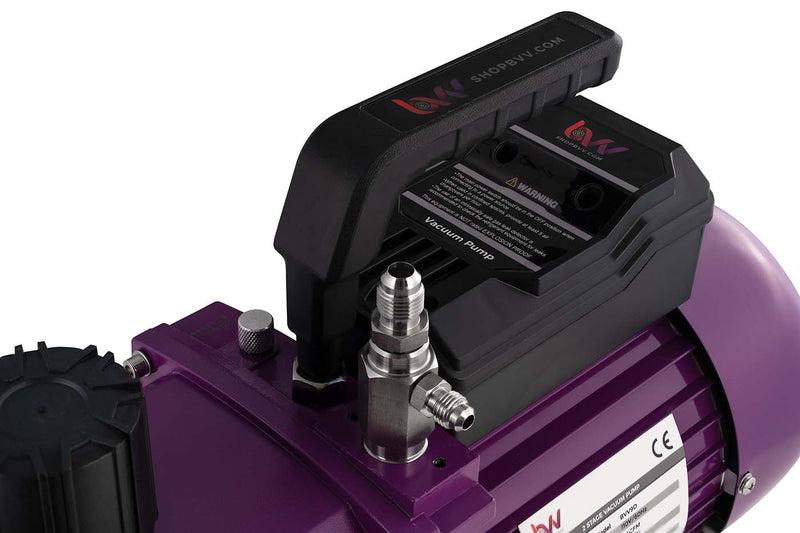

Intake Fittings	Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports

VE115 Specification
Free Air Displacement - (CFM)	3CFM
# Of Stages	1
Voltage	110v / 60Hz
Ultimate Vacuum	5 Pa
HP	1/4
Oil Capacity	280ml
Weight	15LB
Intake Connection	1/4" SAE & JIC

Compatibility Explanation:

BestValueVac® chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers. The lid may only be cleaned with soapy water.
SVac® chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
GlassVac® chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac® chambers for resin infusion and wood stabilization. The lid may be cleaned with any solvent or cleaning agent.

See FAQ at the top for product safety warnings.

Pump Warranty Information:

Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)

If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result from the first use.)
To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.

For shipping info including Import/Export details visit our Shipping link at the bottom of the page.

BVV 3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

3 Gallon Wide Stainless Steel Vacuum Chamber and Vacuum Pump Kit

(Chamber comes with 2 yr. limited warranty)
