Copper Piping Kit Lineset for Mini Split Installation

Load image into Gallery viewer, Copper Piping Kit Lineset for Mini Split Installation

SKU: PKW-1/4-3/8-10

Copper Piping Kit Lineset for Mini Split Installation

Name: Copper Piping Kit Lineset for Mini Split Installation
Brand: Pioneer Official Store
SKU: PKW-1/4-3/8-10
Price: 90.0 USD
Availability: InStock

No reviews

Pioneer Official Store

1/4 - 3/8

1/4 - 1/2

3/8 - 5/8

1/4 - 5/8

10 Ft

16 Ft

25 Ft

33 Ft

50 Ft

Quantity must be 1 or more

Overview

Connect your indoor and outdoor units securely with a copper piping kit lineset for mini split installation. Copper tube kits offer long-term durability that allows you to install them and forget about them as you enjoy the benefits of your new heating and cooling system.

Our kits come equipped with all the essentials for mini split piping, from nonadhesive wrapping tape to copper pre-flared refrigerant pipes that reduce the risks of rusting and future maintenance requirements. Shop Pioneer’s copper piping kit lineset for mini split installations and pair your heat pump with quality components that maximizes its performance.

Detailed Diameter Reference Guide Available Here

Diameter Selection Guide (FOR WYS-20 and WYS-22 SERIES)

9,000 BTU Models (except for WYS009AMFI22RL)	1/4"-3/8"
12,000-18,000 BTU Models (as well as WYS009AMFI22RL)	1/4"-1/2"
24,000 BTU and Above Models	3/8"-5/8"

Diameter Selection Guide (FOR DIAMANTE/WYT-19 SERIES)

9,000 BTU - 18,000 BTU	1/4"-3/8"
24,000 BTU	1/4"-1/2"
36,000 BTU	1/4"-5/8"

Diameter Selection Guide (FOR DIAMANTE ULTRA/WYT-22 SERIES)

9,000 BTU - 12,000 BTU	1/4"-3/8"
18,000 BTU	1/4"-1/2"
24,000 BTU	1/4"-5/8"

Diameter Selection Guide (FOR HYPERFORMANCE WYF-25 SERIES)

9,000 BTU - 12,000 BTU	1/4"-3/8"
18,000 BTU	1/4"-1/2"
24,000 BTU	3/8"-5/8"

Wrench/Tool Sizes Needed

The corresponding Wrench/Tool sizes needed to turn the flare nuts of the line-sets are as follows:

Line Diameter	Wrench Size
1/4"	5/8"
3/8"	13/16"
1/2"	15/16"
5/8"	1-1/16"
3/4"	1-5/16"

Pioneer’s copper tubing kits include:

Copper pipes
3 layer insulation
Brass flare nuts

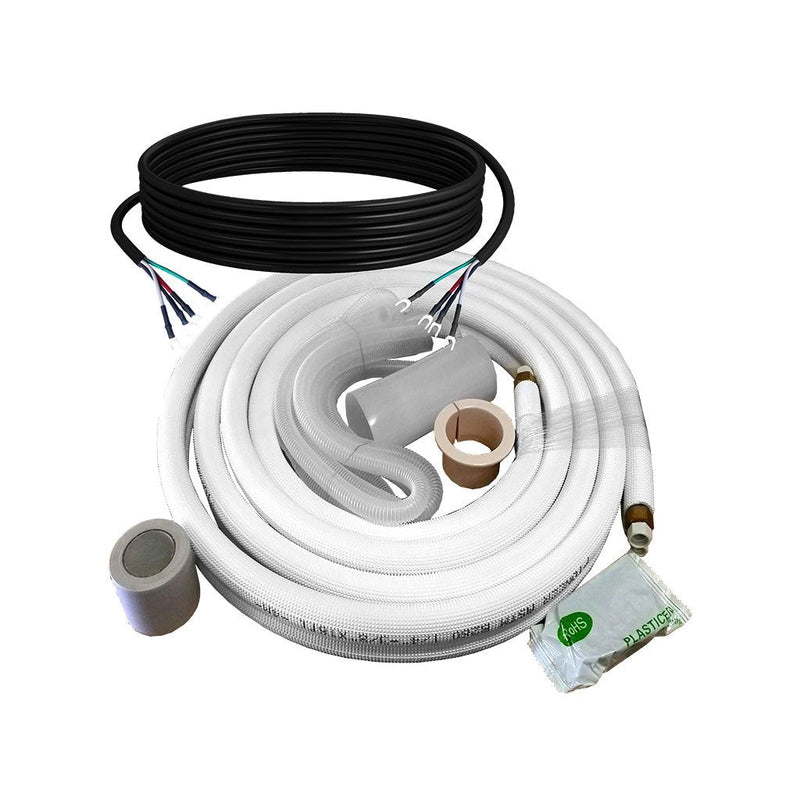

Includes the following:

Insulated pre-flared copper refrigerant pipes (length and diameter as chosen)
4 lead communication wire between indoor and outdoor unit (same length as chosen)
10 ft. condensate drain hose
Wall passage sleeve with cap and putty
Non-adhesive wrapping tape (2" wide, 50' length)

Feature Set

Highest Quality Full Copper Piping Kit Set.
Compliance with ASTM-B280 Standard (USA-Canada).
Dehydrated Soft Drawn Copper Tubes.
Three Layer Water Proof P.E. Insulation.

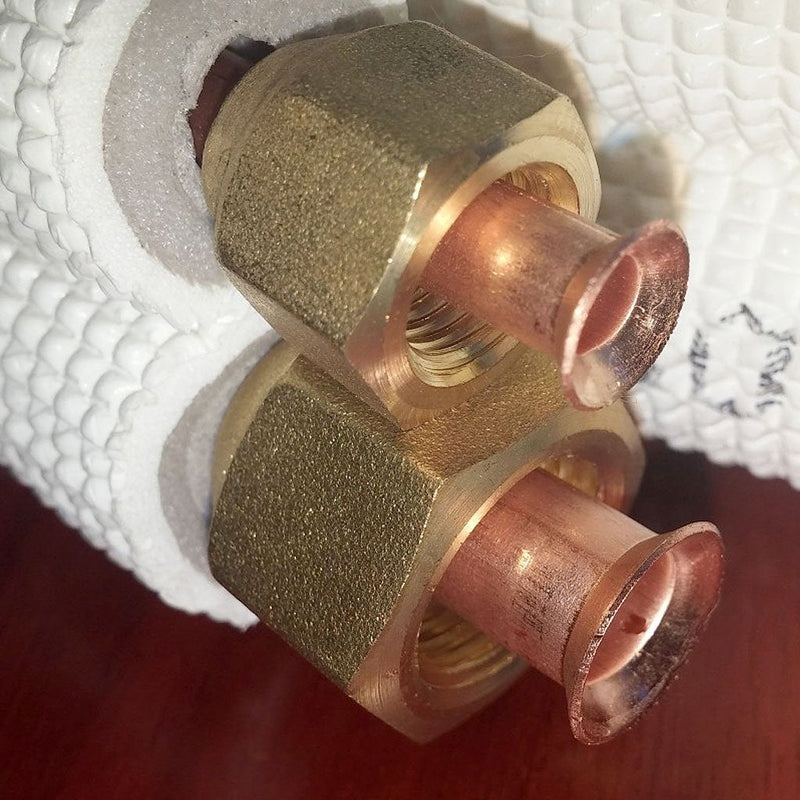

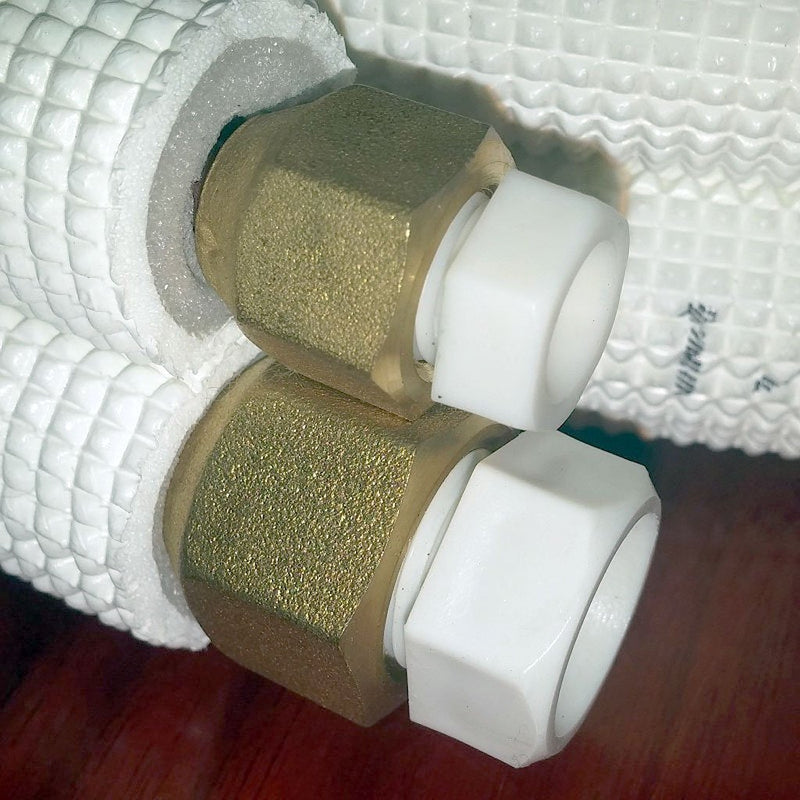

Brass Flare Nuts, on ready formed flare ends.
Matching Length 16 Gauge 4 Lead Signal Cable set.
Plastic dust caps, to keep clean during installation.
Wall Sleeve/Liner with Cap.
Wall Filler Putty.
Non Adhesive Wrapping Tape.
