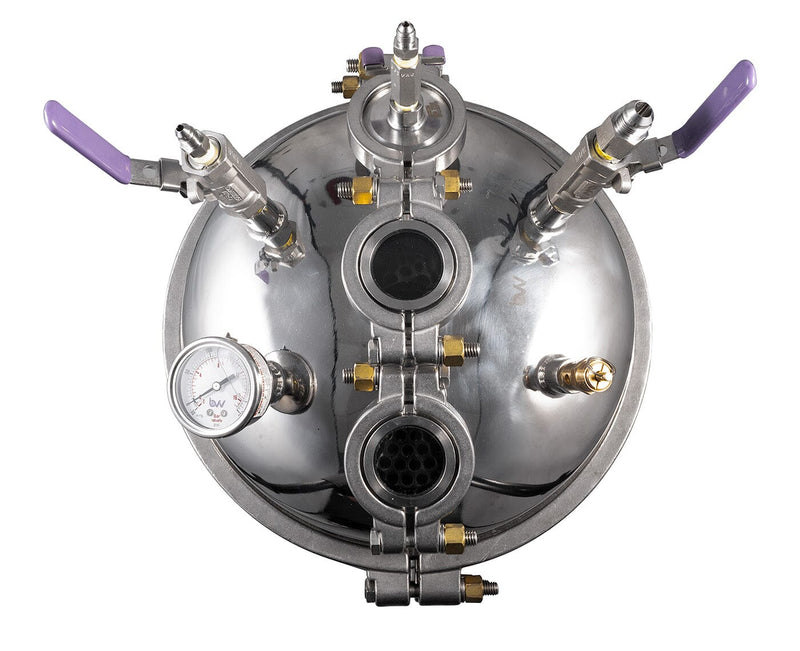

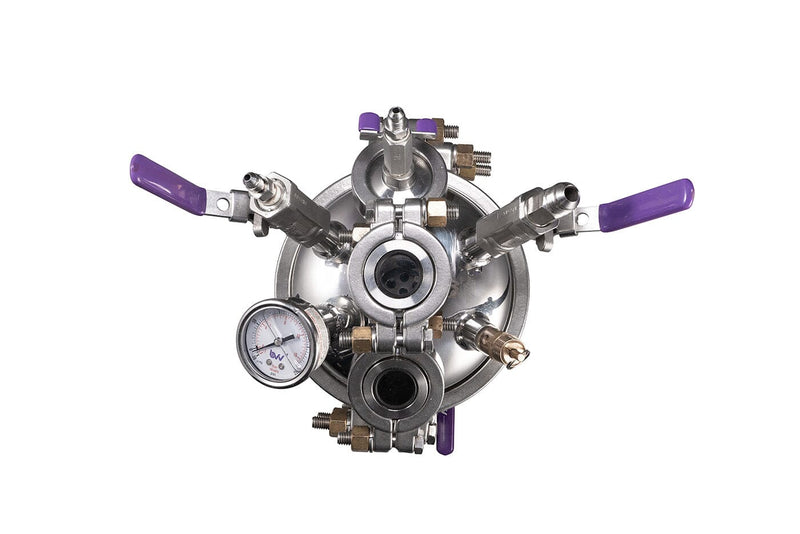

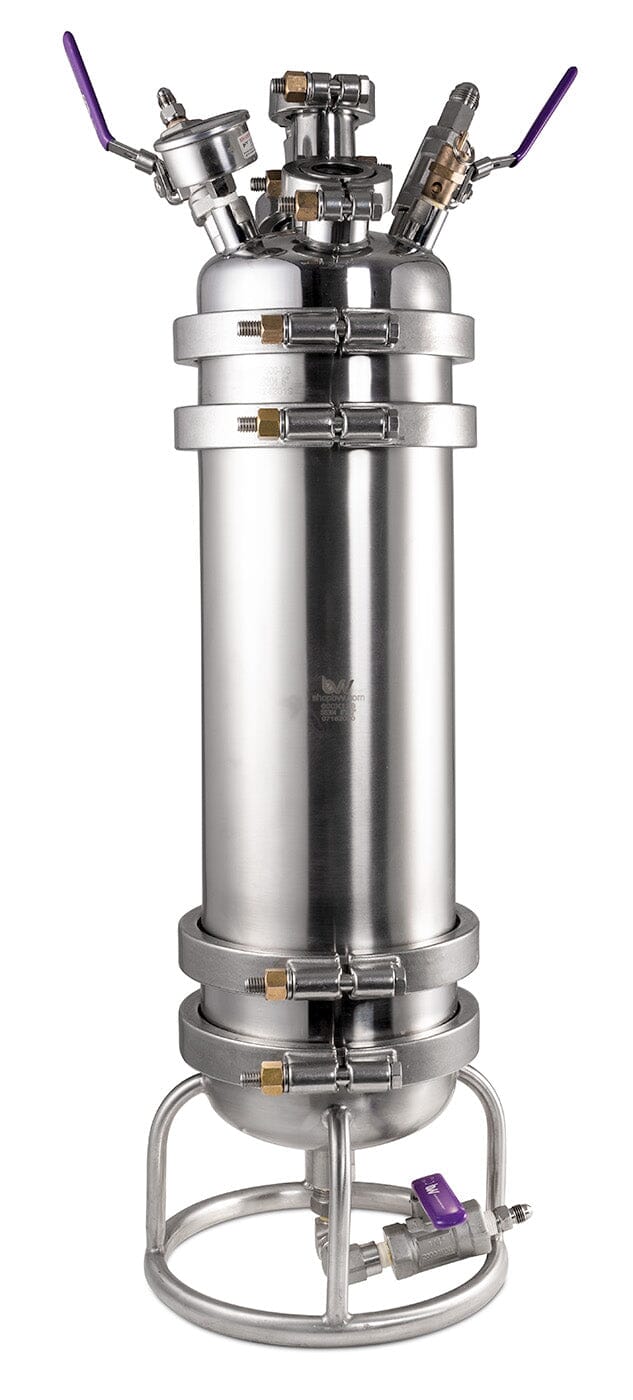

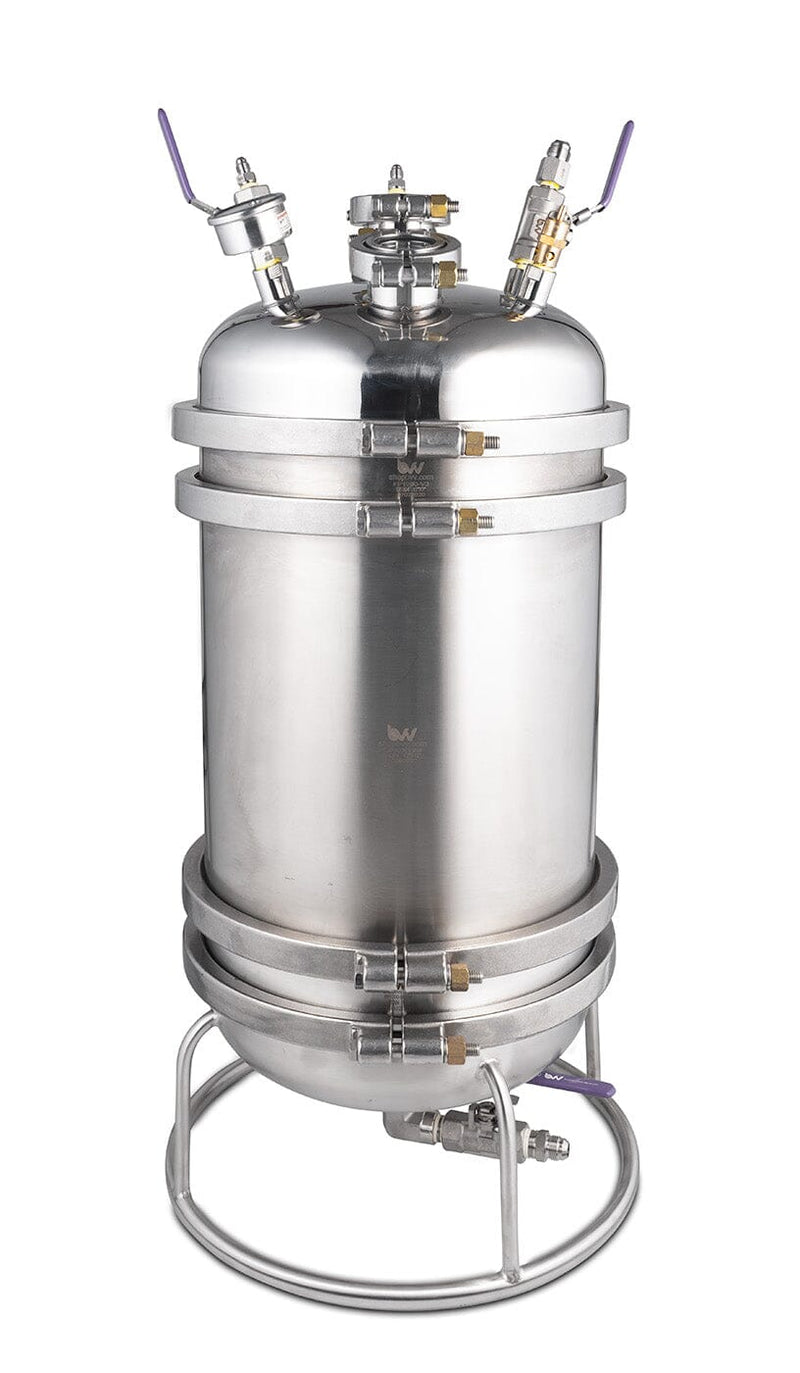

Nitrogen Pressure Filter

Is vacuum filtration bottlenecking your processing? Filter faster with BVV's Nitrogen assisted pressure filters.  Designed for versatility our prebuilt pressure filters come complete with our 1 micron Dutch Weave Sintered disk for ultra-fine filtration. Process continuous or batch-style solutions in half the time compared to most vacuum filtration applications.

Specifications

• 6"x12" or 12"x12" filtration body

• 1um  Dutch Weave Sintered disc
• Filter Plate Retention Ring
• Fast Flow Filter paper Included
• Solvent dispersal plate
• 2X Borosilicate Sight Glasses
• 1X 125 PSI ASME Safety Valves
• 1X -30hg-250PSI Compound Pressure Gauges
• 1X 1/2" JIC Lid Valve
• 2X 1/4" JIC Lid Valves
• 1X JIC Drain Valve (6NPS: 1/4" 12NPS: 1/2" JIC)
• Maximum Pressure Rating: 125PSI
