Product Details

Description:

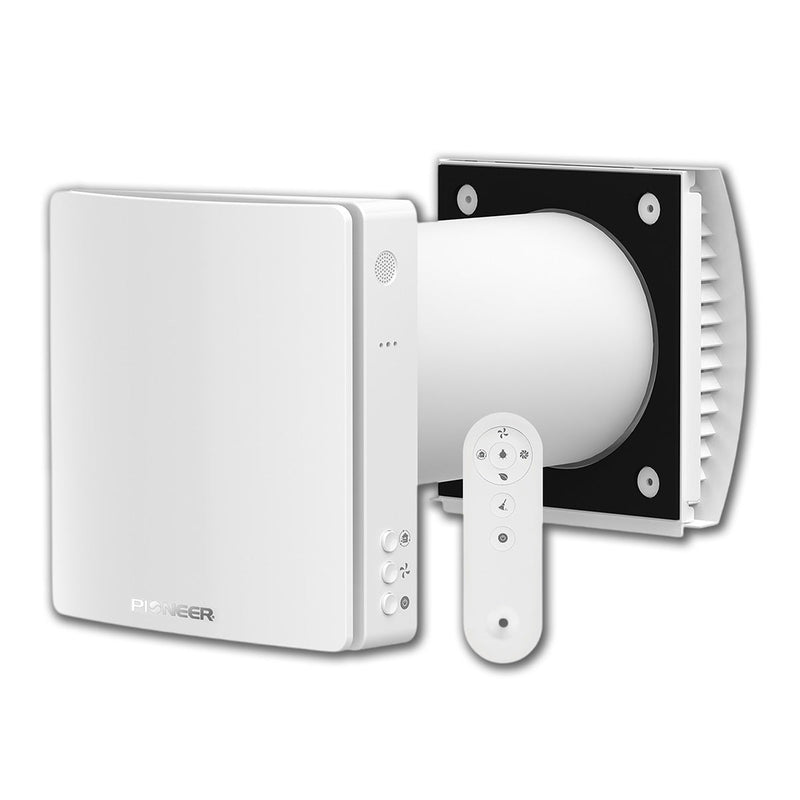

With its compact design and highly integrated appearance, Pioneer®'s wall-mounted  Energy Recovery Ventilator (ERV-50) system offers the most energy-efficient way of renewing the air inside your home. This lightweight system neatly recesses within the wall and intelligently exchanges stale indoor room air with fresh, clean outside air - all the while filtering out and reducing unhealthy indoor air contaminants. Not only that, but the internal high-tech ceramic energy accumulator housed within also offers a heat recovery efficiency of up to 97% - ensuring that the comfortable room temperature inside is neither raised nor lowered by the temperature of the air outside which could be wildly different.

Easily installed and operated, the 50 Series ERV reliably ensures year-round elimination of air pollutants and impurities, while delivering optimum indoor air quality. Breathe life into your home with delightfully crisp, fresh air today!

• Ultra High Efficiency ECOasis™ ERV-rm Series Ductless Energy Recovery Ventilation System with 97% Heat Recovery
• Minimal Energy Consumption with an Average Power draw of only 8W
• Wall-Mounted with Variable Length Air Channel Duct to Suit Different Wall Thicknesses
• Large Volume Air Output with Up to 35 CFM of Treated Airflow
• Washable & Re-usable Integrated Prefilters, along with F7 (MERV13) Filter
• Wi-Fi Controlled via Free Smartphone App (along with Standard Controller)
• Rainproof Design with Hooded and Angled Outdoor Cover
• Super-Silent Operation with a Maximum Sound Output of 32.7 dB(A)

Features and Benefits:

• Remove Room Air Pollutants: Filtration of air impurities such as MVOCs (Microbial Volatile Organic Compounds) along with removal of dust and other contaminants that commonly cause coughing, fatigue, and allergy aggravation
• Freshen and Renew Breathing Air: Extraction of stale and stuffy room air while simultaneously introducing fresh outdoor air into the room to improve oxygen levels and overall quality of life

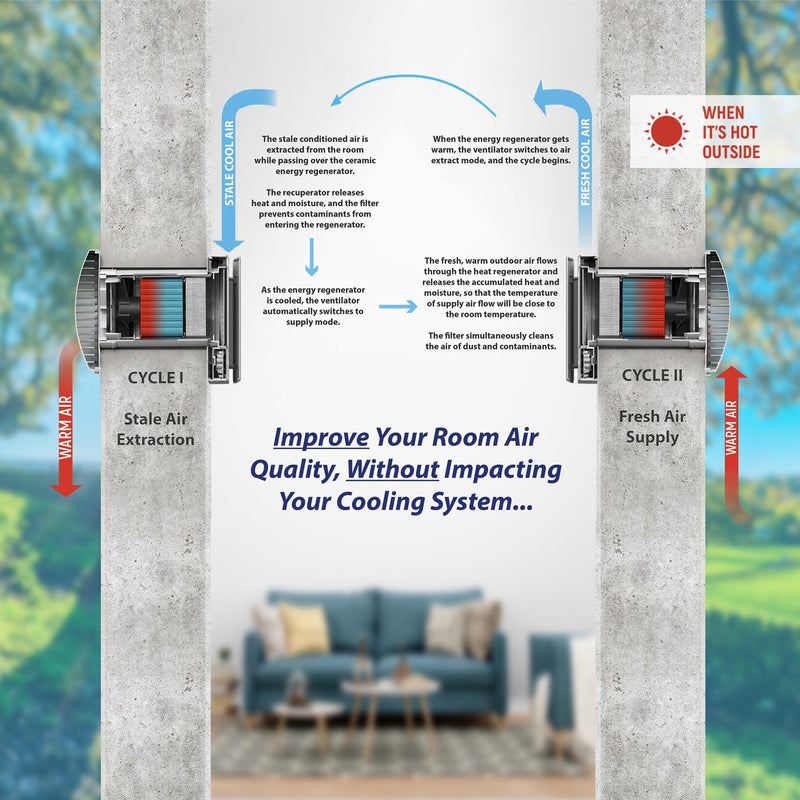

• Minimize Strain on the Home Heating or Cooling System: By cooling the incoming hot outside air in summertime, and heating the incoming cold outside air in wintertime, the system intelligently prevents a change in indoor air temperature by using that outgoing stale indoor air to preheat or precool the incoming outdoor air depending on the season (Recommended to install two 50 Series ERVs to take advantage of this benefit)
• Continuously Monitor Air Quality: A built-in CO₂ sensor allows automated management of oxygen & CO₂ levels inside the room to maximize breathability

Specifications and Product Details:

• Power Supply: 110 ~ 240 VAC (50~60 Hz) with Plug-In Power Cord

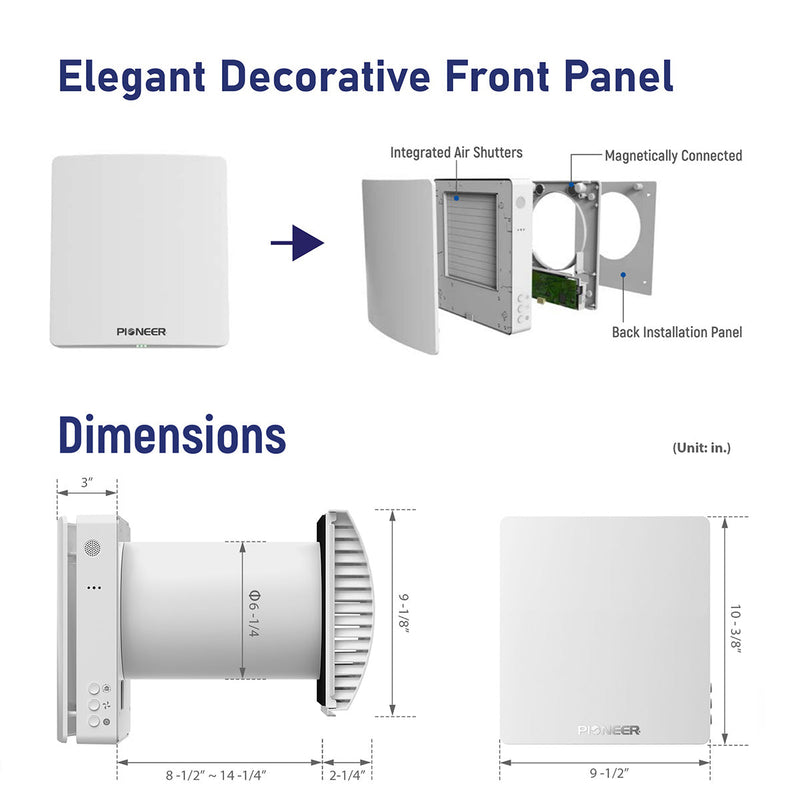

• Dimensions (WDH): 9-3/8" x 19-3/8" x 10-3/8"
• Airflow w/ F7 Filter (Lo/Med/Hi/Max): 11.8 / 23.5 / 29.4 / 35.3 CFM
• In-Wall Channel Span: 8-1/2" ~ 14-1/8"
• Method of Control: Onboard Interface, Handheld Remote, Smartphone App
• Product Weight: 11 lbs
• Input Power (Lo/Med/Hi): 6 / 7 / 8 W
• Water-Resistance Rating: IPX4
• Diameter of Air Duct: 6-1/4"
• Suggested Room Size Per Unit: Up to 300 Sq.Ft.
• Ambient Temperature Operating Range: -4°F - 122°F

Documentation:

• User's Manual
